1.Name:Hydraulic Gear Pump HGP-2A Series
2.Introduction:
COQ mainly engaged in producing and selling all kind of hydraulic pump.COQ have engeged in hydrauclic are for over decades.Our hydraulic gear pump already sold to a lot of countries."Top quality,Reasonable price and Best service " is our target.
3.Model: HGP-2A Series
4.Application:Widely used on Industrial and Agriculture Machine.
5.Packing:Each HGP-2A Series gear pump put in a 125mm*95mm*175mm square box(0.06kg) and then 8 pcs put in a 400mm*260mm*190mm bigger square box(0.53kg).
6.Weight:Each HGP-2A Series gear pump:1.63-1.74 kg.
7.Specification:
| Model | Disp.
(ml/r) | Pressure
(Mpa) | Speed
(r/min) | Dimension A
(mm) | Inlet | Outlet | Weight
(kg) |
| Rated | Max | Rated | Max | Min |
| HGP-2A-F2 | 2 |
18 |
21 |
1800 | 5000 | 900 | 87.7 |
14.5
Flange |
14.5
Flange | 1.63 |
| HGP-2A-F3 | 3 | 850 | 89.7 | 1.65 |
| HGP-2A-F4 | 4 | 4500 | 800 | 93.7 | 1.67 |
| HGP-2A-F6 | 6 | 3500 | 700 | 96.7 | 1.67 |
| HGP-2A-F8 | 8 | 3000 | 600 | 98.7 | 1.71 |
| HGP-2A-F9 | 9 |
15 |
17.5 | 2500 | 550 | 101.7 | 1.73 |
| HGP-2A-F11 | 11 | 2000 | 500 | 104.7 | 1.73 |
| HGP-2A-F12 | 12 | 107.7 | 1.74 |

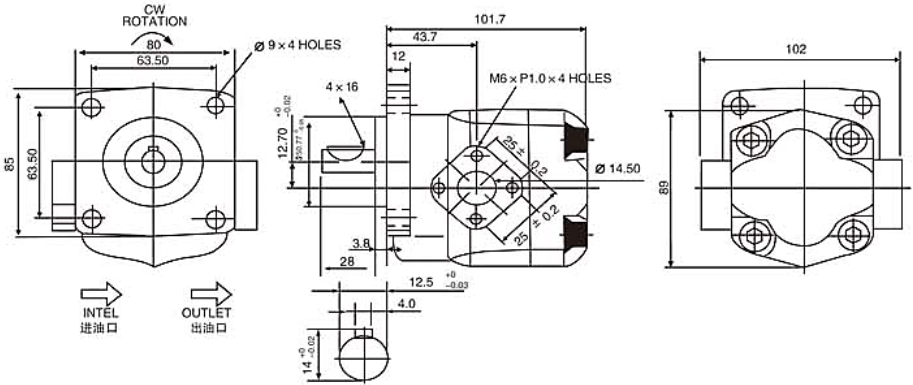

8.Structure Drawing:
9.FAQ:
Q1.What's your main application
--Construction machinery
--Industrial vehicle
--Environmental sanitation equipment
--New Energy
--Industrial Application.
Q2.What is the MOQ
MOQ 8 PCS.
Q3.Can I Mark My Own Brand On The Pump
Yes. Full order Can mark your brand and code.
Q4.How long is your delivery time
Generally it is 2-3 days if the goods are in stock. or it is 7-15 days .if the goods are not in stock, it is according to quantity.
Q5.What payment method is accepted
TT,LC,Western union,Trade assurance,VISA
Q6.How to Place your order
1).Tell us Model number ,quantity and other special requirements.
2).Proforma Invoice will be made and send for your approval.
3).Productions will be arranged upon receipt of your approval and payment or deposit.
4).Goods will be delivered as stated on the proforma invoice.
Q7.What kind of inspection you can provide
COQ has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all pumps are in perfect condition before shipment. We also accept the inspection by the third party you appointed.
